Diagnosis of Fetomaternal Hemorrhage

Quantification of RhD positive fetal cells in blood of RhD negative (pregnant) women


  • Based on flow cytometry
  • Kit contains anti-RhD (BRAD 3) FITC and the control antibody (AEVZ 5.3) FITC
  • Ready-to-use reagents
  • Total assay time is 45 minutes, hands-on-time 15 minutes
  • Registered as Medical Device for In Vitro Diagnostic Use (IVD/CE)


  • Determination of Fetomaternal Hemorrhage
  • Pregnancy with suspected RhD incompatibility

Order now!

Order your products via our order form!
Product code: 9447

Detection and quantification of fetal red blood cells (RBCs) in maternal blood samples is essential for obstetrical management. Measurement of fetal RBCs is critical as the extent of Fetomaternal Hemorrhage (FMH), the transplacental passage of fetal RBCs into the maternal circulation, has consequences for further treatment of mother and child.

Frequency and size of FMH is directly influenced by complications such as abdominal trauma, suspected placental injury or following a caesarean section. In case of antigen incompatibility between mother and child, FMH may result in respiratory problems or anaemia, like Haemolytic Disease of the newborn.

In case of a RhD incompatibility between the fetus and mother, detection (and thus enumeration) of fetal RBCs using an anti-RhD antibody is used to calculate the extent of FMH. The amount of fRBCs is a measure for the prevention of hemolytic disease of the newborn using (prophylactic) anti-D therapy.

Principle of the FMH Kit

With flow cytometry, the anti-RhD BRAD 3 FITC antibody can be used to accurately quantitate the number of RhD positive cells in a mixture of RhD positive and negative cells. Therefore FMH can be analyzed in a maternal blood sample when a negative woman carries a RhD positive fetus.

For optimal interpretation of the results the kit contains an anti-RhD antibody (BRAD 3) and a negative control antibody (AEVZ 5.3) both labeled with FITC.

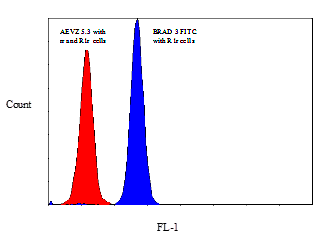

Figure: The figure shows the results of BRAD 3 FITC and AEVZ 5.3 FITC. The red histogram is AEVZ5.3 with negative cells. The blue histogram is BRAD 3 FITC with RhD positive cells.

The FMH Kit can be used only in cases of Rh incompatibility between mother and child. For all other cases the Fetal Cell Count™ Kit is recommended.

Package insert

English: Package insert
